WAC Lighting EN-1260-R2

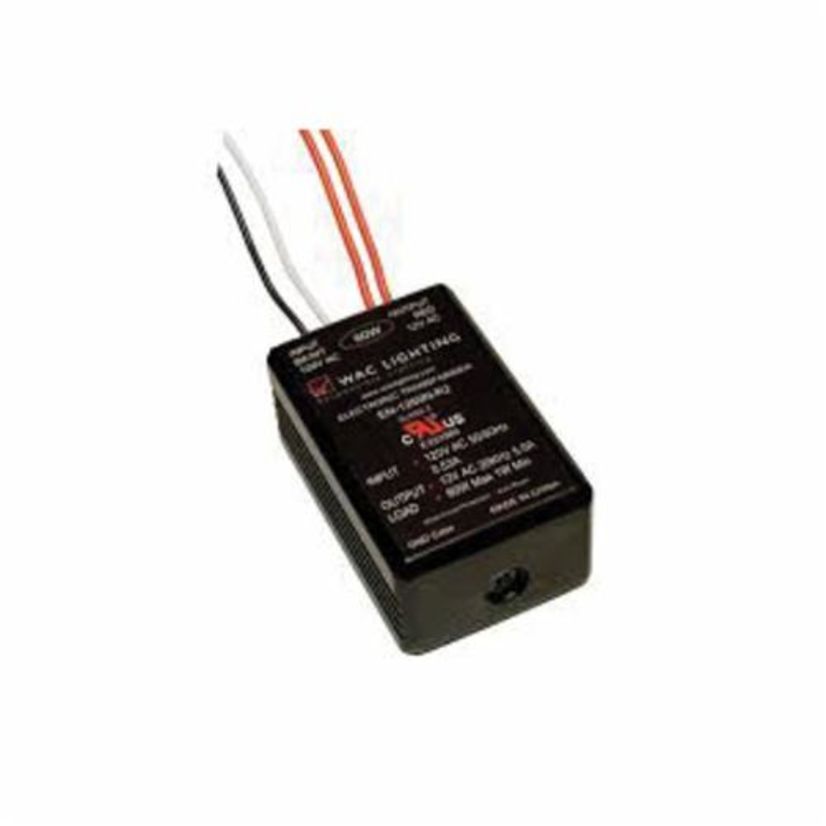

WAC Lighting EN-1260-R2 Electronice Transformer
WAC Lighting EN-1260-R2
WAC Lighting EN-1260-R2 Electronice TransformerBrandWAC Lighting
MFG #EN-1260-R2
Werner Part #2292016
UPC79057609469
BrandWAC Lighting
MFG #EN-1260-R2
Werner Part #2292016
UPC79057609469
Product Description
WAC Electronic Transformer, Non-Enclosed, 120 VAC Input, 12 VDC Output, 20 to 60 W Wattage, 0.53 A, 20 kHz Frequency, Polycarbonate, Black, 2-1/8 in L x 1-1/4 in W x 7/8 in H Dimensions
Attributes
Documents
Applications
Features
Included
Specifications
Attributes
Amperage Rating0.53 A
ColorBlack
Country of OriginUS
Dimensions2-1/8 in L x 1-1/4 in W x 7/8 in H
Input Voltage120 VAC
MaterialPolycarbonate
Output Voltage12 VDC
TypeNon-Enclosed
Wattage20 to 60 W
Frequency Rating20 kHz
Documents
Applications
For used as portable or plug-and-play style transformer
Features
Contains an on/off toggle switch at the base and a 6 FT detachable cord|Built-in auto reset, soft start, short and overload circuit protection features|The soft start delayed start feature extends lamp life by delaying the abrupt inrush current to the lamp|All connections must be made in an enclosure for proper installations|Class II transformers are inherently protected and power limited, protecting the lighting system from both normal and abnormal short circuits|True RMS meter is required to read the high frequency output|Class II|Polycarbonate/aluminum material
Included
MTB-01 Multiple Terminal Block Accessories
Specifications
UL 2108 E204239
WAC Lighting EN-1260-R2 Electronice Transformer
