Sta-Kon F2031
Thomas & Betts Sta-Kon® F2031 F Series Insulated Wire Ferrule, 16 AWG Stranded Copper Conductor, 0.571 in L, Copper, Black
Sta-Kon F2031
Thomas & Betts Sta-Kon® F2031 F Series Insulated Wire Ferrule, 16 AWG Stranded Copper Conductor, 0.571 in L, Copper, BlackIn Stock: 1500more info
|
In Stock: 1500more info
|
Product Description
Sta-Kon® Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 16 AWG Conductor, 0.571 in Length, Short Barrel, 0.134 in Dia Barrel, 300 VAC, Specifications: 0.071 in ID x 0.315 in L x 0.006 in THK Pin, 0.134 in Dia Base, 105 deg C, Copper, Tin Coated, Black
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.134 in Dia
Barrel TypeShort
ColorBlack
Conductor size16 AWG
Conductor TypeStranded Copper
Country of OriginDE
FinishTin Coated
ManufacturerThomas & Betts
MaterialCopper
SeriesF Series
Temperature Rating105 deg C
TypeInsulated
Type / StyleInsulated
Voltage Rating300 VAC
Documents
Features
Polypropylene insulatedFerrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocksMade of high conductivity copperFraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimizedInsulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clampFerrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal blockFerrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wiresMeets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminalT1, T3 and ERG4 recommended tools
Specifications

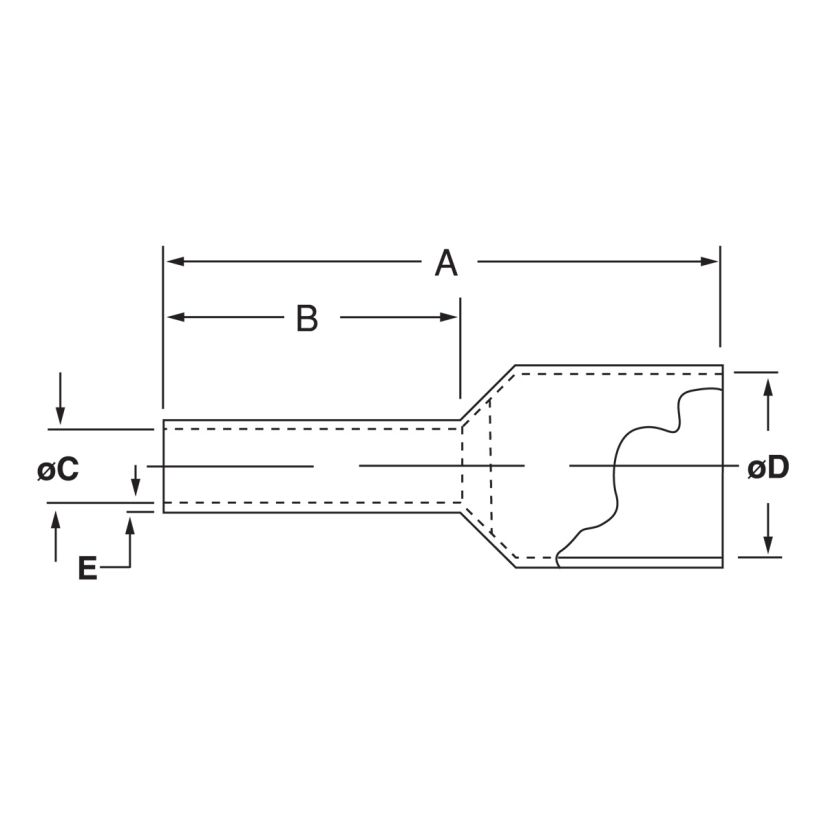

0.071 in ID x 0.315 in L x 0.006 in THK Pin, 0.134 in Dia Base
