Sta-Kon 14RBS-251TX
Thomas & Betts Sta-Kon® 14RBS-251TX Fully Insulated Heat Shrinkable Male Tab, 16 to 14 AWG Conductor, 0.25 in W x 0.32 in THK Tab, Brass, Blue
Sta-Kon 14RBS-251TX
Thomas & Betts Sta-Kon® 14RBS-251TX Fully Insulated Heat Shrinkable Male Tab, 16 to 14 AWG Conductor, 0.25 in W x 0.32 in THK Tab, Brass, BlueProduct Description
Sta-Kon® Male Tab, Fully Insulated Heat Shrinkable, Copper Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.32 in THK Tab, 600 VAC, 105 deg C, Brass, Blue, Tin Coated, 1-3/4 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlue
Conductor size16 to 14 AWG
Conductor TypeCopper
Country of OriginUS

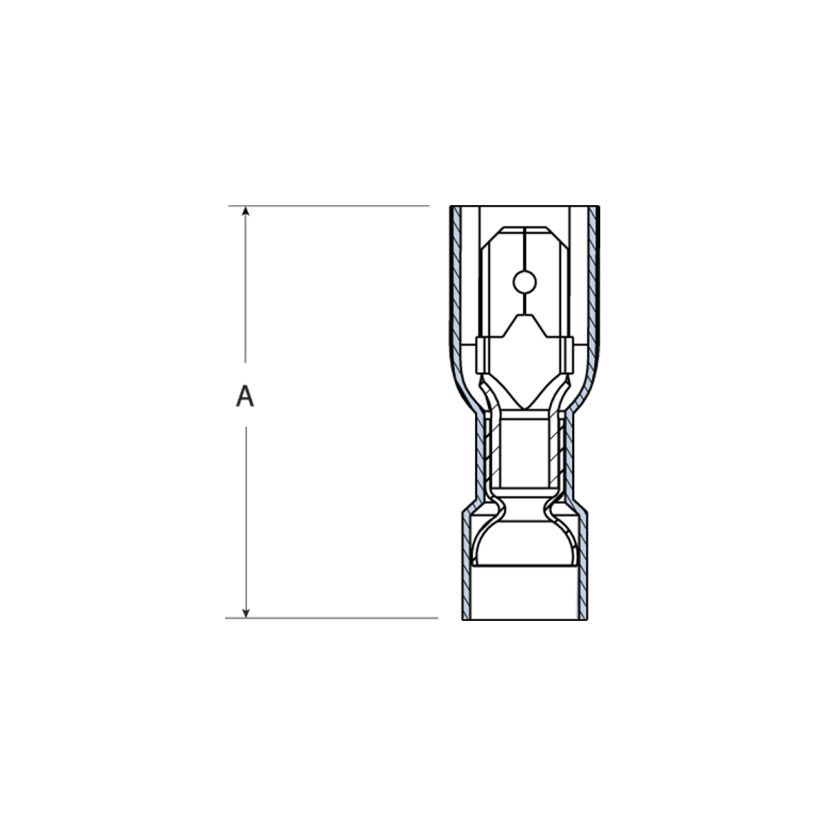

Dimensions1-3/4 in L
FinishTin Coated
ManufacturerThomas & Betts
MaterialBrass
Tab Size0.25 in W x 0.32 in THK
Temperature Rating105 deg C
TypeFully Insulated Heat Shrinkable
Type / StyleFully Insulated Heat Shrinkable
Voltage Rating600 VAC
Documents
Features
0.2 in maximum insulation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified
