Panduit DNF14-250-C

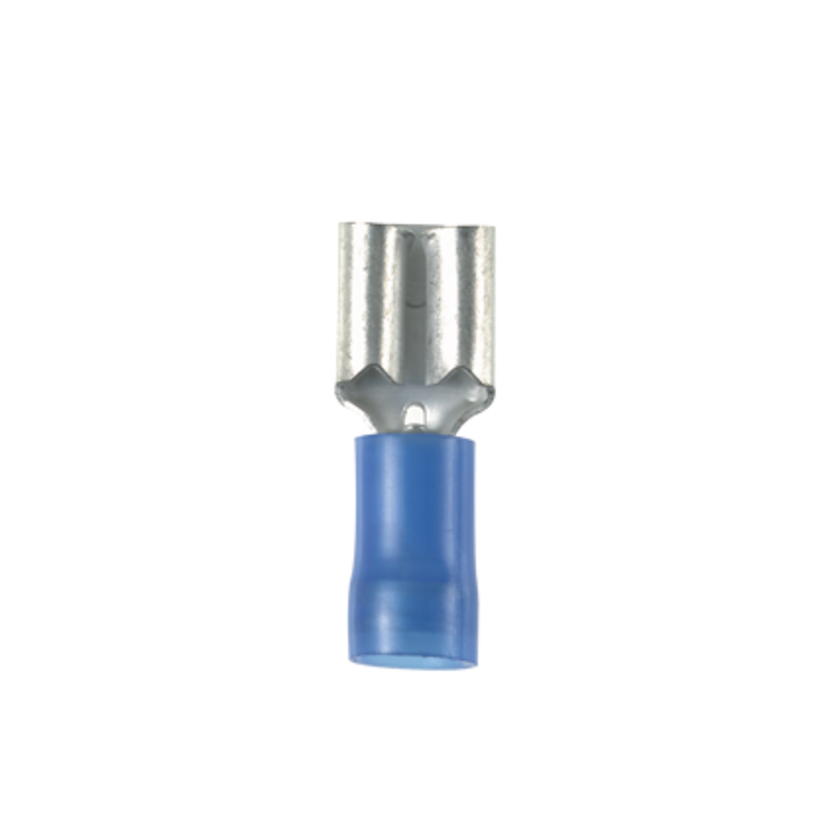

Panduit® Pan-Term® DNF14-250-C DNF Vibration Resistant Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Brass, Blue, Insulated
Panduit DNF14-250-C
Panduit® Pan-Term® DNF14-250-C DNF Vibration Resistant Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Brass, Blue, InsulatedIn Stock: 400More Info
|
BrandPanduit
MFG #DNF14-250-C
Werner Part #53798
UPC074983827190
In Stock: 400More Info
|
BrandPanduit
MFG #DNF14-250-C
Werner Part #53798
UPC074983827190
Product Description
Panduit® Pan-Term® Female Disconnect, Vibration Resistant, Series: DNF, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.162 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 194 deg F, Brass, Blue, Tin Plated, 0.83 in L x 0.29 in W x 0.12 in H, Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeFunnel Entry/Sleeved
ColorBlue
Conductor size14 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions0.83 in L x 0.29 in W x 0.12 in H
FinishTin Plated
InsulatedInsulated
ManufacturerPanduit
MaterialBrass
Tab Size0.25 in W x 0.032 in THK
Temperature Rating194 deg F
Terminal TypeCrimp
TypeType DNF Loose Piece Vibration-Resistant
Type / StyleVibration Resistant
Voltage Rating300 V
Documents
Features
Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every timeDisconnect can be inserted and removed from the male tab without the use of tools for lower installed costInternal barrel serrations assure good wire contact and maximum tensile strengthInternal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
0.162 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
