Leviton 14W33
Leviton® Wetguard® 14W33 1-Phase Cable Mount Grounding Watertight Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Leviton 14W33
Leviton® Wetguard® 14W33 1-Phase Cable Mount Grounding Watertight Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, YellowOut of StockMore Info
|
Out of StockMore Info
|
Product Description
Leviton® Wetguard® Straight Blade Plug, 1-Phase Cable Mount Grounding Watertight, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20P, Industrial Grade, NEMA 4/4X/12/IP66/IP67 Enclosure, 0.375 to 0.655 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 1.5 in Dia x 2.71 in L
Attributes
Documents
Features
Specifications
Attributes
Amperage Rating20
ColorYellow
Country of OriginUS
Dimensions1.5 in Dia x 2.71 in L
Enclosure TypeNEMA 4/4X/12/IP66/IP67
GradeIndustrial
ManufacturerLeviton
MaterialTPV

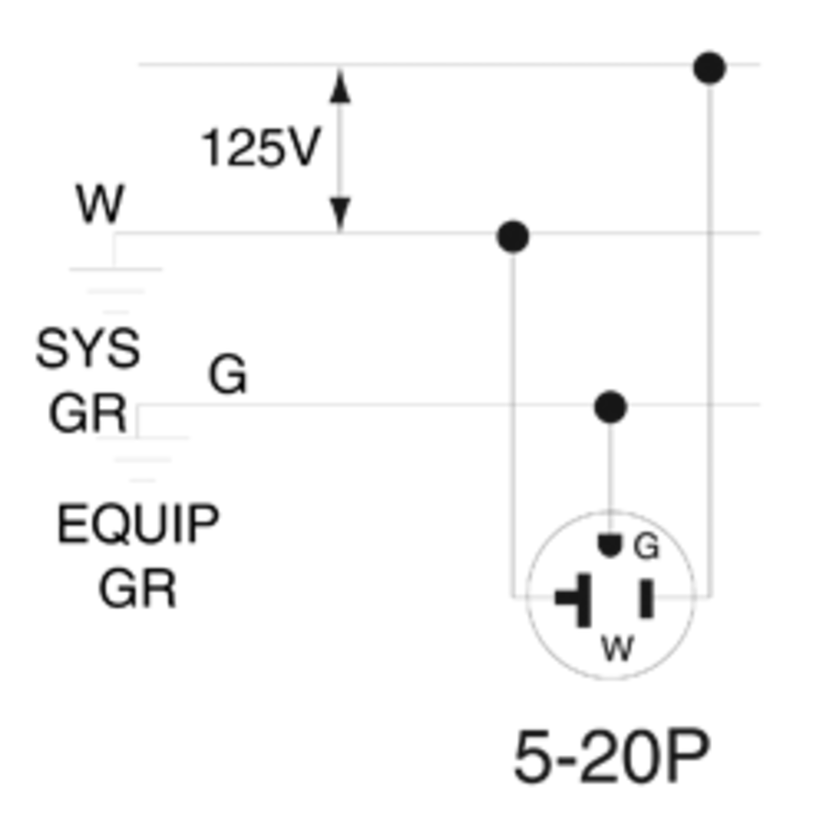

NEMA RatingNEMA 5-20P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type1-Phase Cable Mount Grounding Watertight
Type / Style1-Phase Cable Mount Grounding Watertight
Voltage Rating125 VAC
Documents
Features
Corrosion resistant electroless nickel coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environmentsEPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solventsPlug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuseInterlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectorsMulti-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip sealNon-magnetic stainless steel fast threading assembly screws wont interfere with sensitive equipmentConnector hood closure cap seals device when not in use16 to 10 AWG terminal accommodationS/ST/SO/SOW cord
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|CSA C22.2 No. 42 File No. LR406|Federal Specification WC596|UL94 V-2 Flammability Rating
Leviton® Wetguard® 14W33 1-Phase Cable Mount Grounding Watertight Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
