Appleton GLOLED1QZBU

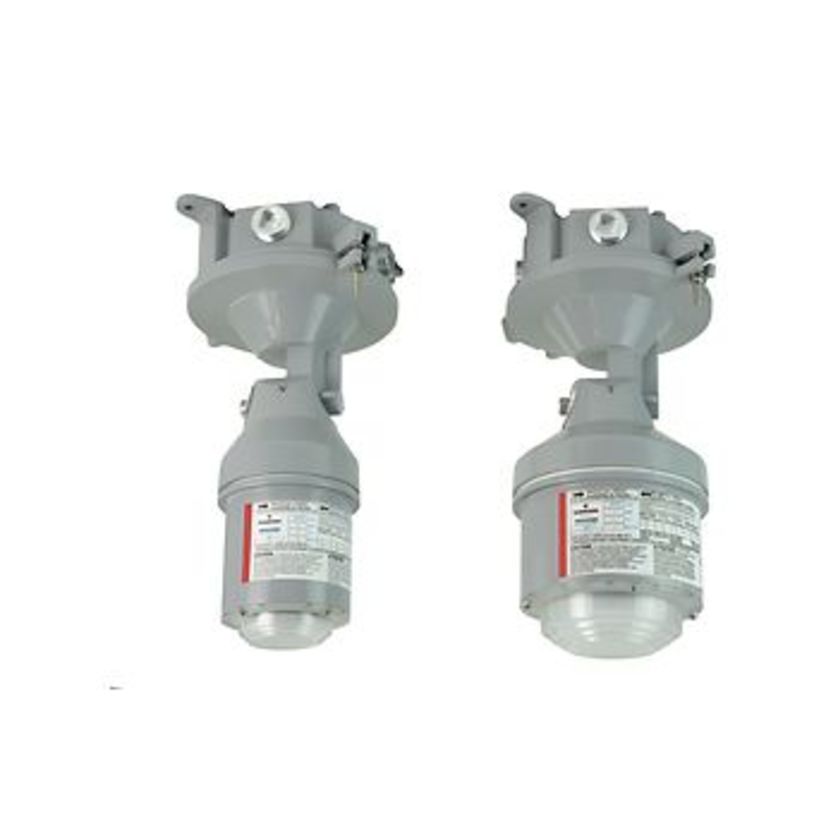

Appleton GLOLED1QZBU Glomaster LED Series Luminaires
Appleton GLOLED1QZBU
Appleton GLOLED1QZBU Glomaster LED Series LuminairesOut of StockMore Info
|
Out of StockMore Info
|
Product Description
Appleton Electric Glomaster LED Series Luminaires: Vapor Proof / Vapor Tight Jelly Jar LED Lighting.
Enclosed and Gasketed Fixtures - Hazardous Locations
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Color Temperature3000K or 4000K or 5000K
FinishGray epoxy powder coat
Fixture Wattage60-150W
Lumen1,000 or 2,000 - 3,500 or 5,000
MaterialPolycarbonate and Stainless Steel
Mounting TypeWall, Ceiling or Pendant
Operating Temperature-40 deg F to 131 deg F
Voltage120-277 Vac
Documents
Applications
Enclosed and gasketed LED fixtures with field selectable technology for
a wide range of hazardous areas where typical industries include:
— Manufacturing plants, chemical and petrochemical processing
facilities, water/wastewater treatment plants, and off-shore and
dockside installations.
• Typical applications include:
— Stairwells
— Elevator pits
— Eye wash and first aid stations
— Emergency call stations
— Exits, doorway lighting
— Access tunnels
— Garages and storage areas
— Outdoor walkways
— Docks
— Class I, Division 2 area where extra light is required
Features
- Versatile with field selectable technology to fit mutiple applciation's needs
- Each fixture offers dual lumen outputs that are selectable by the user.
- Each fixture offers user selectable correlated color temperature (CCT); 3K, 4K or 5K
- Multiple mounting positions available due to the adjustable knuckle design which allows the fixture to rotate from 90 to 180 degrees, enabling it to be mounted as a wall, ceiling or pendant fixture.
- Huge energy savings when compared to legacy lighting, just 7 to 38 Watts
- Optional polycarbonate color globes available in red, green, blue and amber. Used as indicator lighitng in multiple applications.
- Optional stainless steel wire guards that can be used for additional protection.
Specifications
- NEC/CEC Certifications and CompliancesClass I Division 2 Groups A, B, C, D | Class II Division 1 Groups E, F, G | Class III | Class I Zone 2 | Zone 20 Type 3R, 4, 4X | IP66 | Suitable for wet locations | Simultaneous Exposure |Marine outside type (salt water)* for USA ONLY
Warranty
5 year standard warranty
