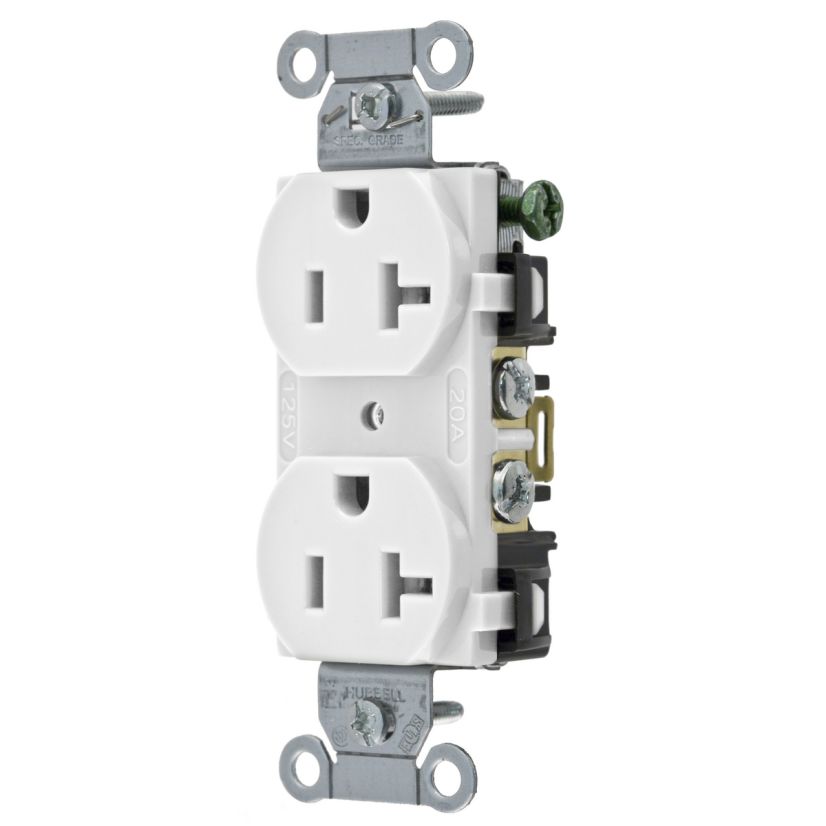

Hubbell Wiring Device - Kellems BR20WHI
Hubbell Wiring Device-Kellems BR20WHI Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems BR20WHI
Hubbell Wiring Device-Kellems BR20WHI Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, WhiteIn Stock: 1922More Info
|
BrandHubbell Wiring Device - Kellems
MFG #BR20WHI
Werner Part #3789135
UPC783585144023
In Stock: 1922More Info
|
BrandHubbell Wiring Device - Kellems
MFG #BR20WHI
Werner Part #3789135
UPC783585144023
Product Description
Wiring Device-Kellems Straight Blade Receptacle, Duplex Self-Grounding, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Specification Grade, -40 to 75 deg C, Back/Side Wired Terminal, Composite/Thermoplastic, White, 3.281 in H x 1.322 in W x 1.067 in D
Attributes
Documents
Features
Specifications
Attributes
Amperage Rating20
ColorWhite
Country of OriginCN
Dimensions1.32 x 0.83 x 3.28 in
GradeCommercial/Specification
GTIN00783585144023
Horsepower1 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-20R
Number of Poles2
Number of Wires3
SeriesDuplex Self-Grounding
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Duplex Self-Grounding Screw Mount
Type / StyleDuplex Self-Grounding
Voltage Rating125 VAC
Documents
Features
- Traditional face shape
- Withstands 2000 VAC dielectric voltage
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- Smooth face
- Easy access split circuit tab
- Triple wipe contacts
- Nylon base, 0.03 in brass power contacts
- Brass ground contacts
- 0.062 in nickel plated steel wire clamp
- Plated steel terminal screws
- 0.04 in galvanized steel mounting strap
- Stainless steel automatic self-grounding staple
- Galvanized steel mounting screws
- Installation ease, single tab break-off ears and self-grounding staple
- Certified for current interrupting at full rated current | Traditional duplex receptacle
Specifications
Standards/Approvals: UL 498, File No. E2186 Listed, UL 94-V-2 Flammability Rating|CSA C22.2, No. 42| NEMA WD1/WD5/WD6 Compliant
Hubbell Wiring Device-Kellems BR20WHI Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
