Leviton 5266-C
Leviton® Black & White® 5266-C Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/white
Leviton 5266-C
Leviton® Black & White® 5266-C Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/whiteIn Stock: 136More Info
|
BrandLeviton
MFG #5266-C
Werner Part #45529
UPC078477795200
In Stock: 136More Info
|
BrandLeviton
MFG #5266-C
Werner Part #45529
UPC078477795200
Product Description
Leviton® Black & White® Straight Blade Plug, Cable Mount Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P, Industrial Grade, 0.25 to 0.685 in Cord Dia, -40 to 60 deg C, Nylon, Black/White, 1.53 in Dia x 1.98 in H
Attributes
Documents
Features
Specifications
Attributes
Amperage Rating15
ColorBlack/White
Country of OriginUS
Dimensions1.53 in Dia x 1.98 in H
GradeIndustrial
ManufacturerLeviton
MaterialNylon

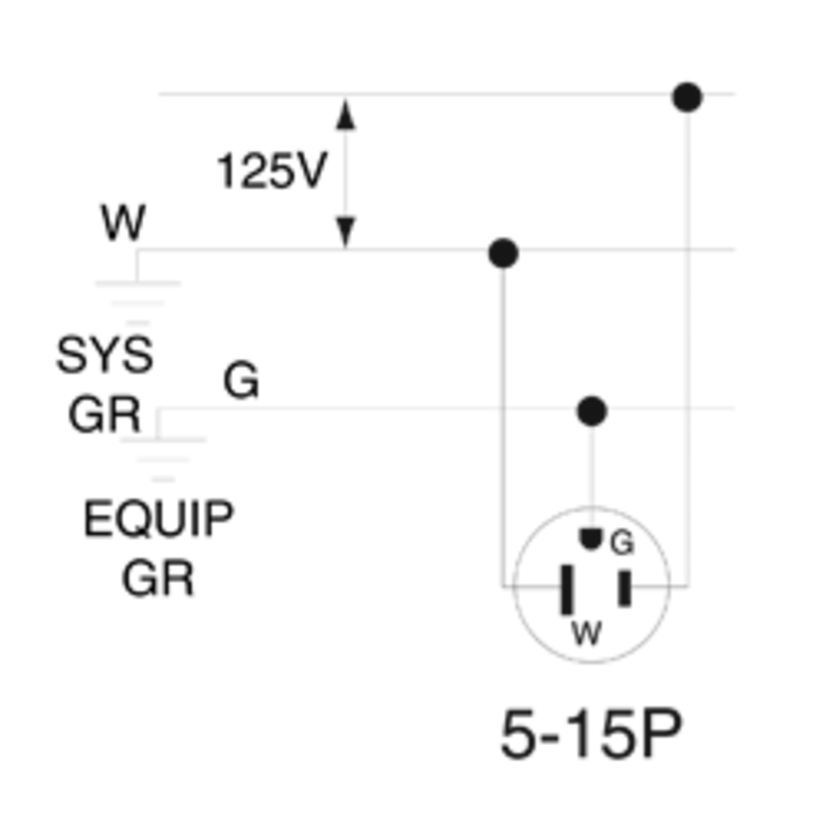

NEMA RatingNEMA 5-15P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
TypeCable Mount Grounding
Type / StyleCable Mount Grounding
Voltage Rating125 VAC
Documents
Features
Rugged nylon construction resists impact, sunlight, chemicals and rough useAll contacts are solid 1-piece brass for better conductivityTriple wipe, heavy duty power contacts set in deep pockets to resist damageCaptive, color coded brass 8 AWG terminal screwsPower indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years18 to 10 AWG terminal accommodationZinc plated steel assembly screws and solid brass blade and contactsThermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screwsSuper tough nylon body
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
Leviton® Black & White® 5266-C Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/white
In Stock: 136More Info
|
