Leviton 5278-CWP
LevitonĀ® 5278-CWP Grounding Straight Blade Power Inlet Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Leviton 5278-CWP
LevitonĀ® 5278-CWP Grounding Straight Blade Power Inlet Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, GrayIn Stock: 13More Info
|
BrandLeviton
MFG #5278-CWP
Werner Part #45538
UPC078477018712
In Stock: 13More Info
|
BrandLeviton
MFG #5278-CWP
Werner Part #45538
UPC078477018712
Product Description

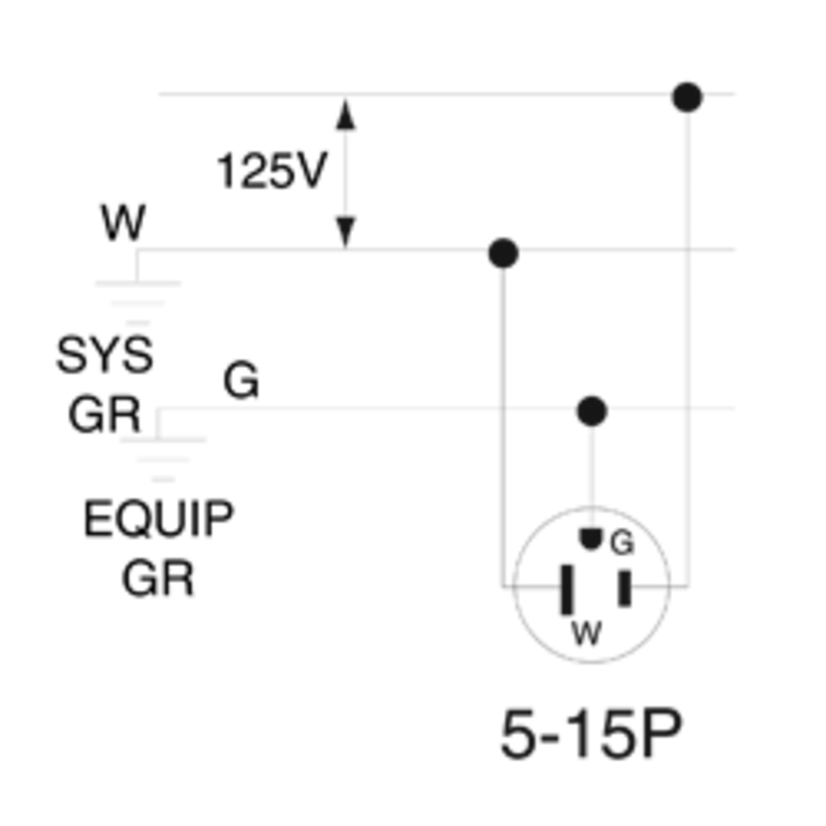

LevitonĀ® Straight Blade Power Inlet Receptacle, Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P, Industrial Grade, -40 to 60 deg C, Standard Wire Well Terminal, Nylon, Gray, 4.56 in H x 2.84 in W x 2.82 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Amperage Rating15
ColorGray
Country of OriginMX
Dimensions4.56 in H x 2.84 in W x 2.82 in D
GradeIndustrial
Horsepower1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-15P
Number of Poles2
Number of Wires3
Terminal TypeStandard Wire Well
TypeGrounding
Type / StyleGrounding
Voltage Rating125 VAC
Documents
Features
Panel, FD box and FS box mounting18 to 10 AWG terminal accommodation2000 VAC minimum dielectric strengthNylon strap
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR16347|UL 498 File No. E13393|UL94 V-2 per UL94 V-0/V-2 Flammability Rating
