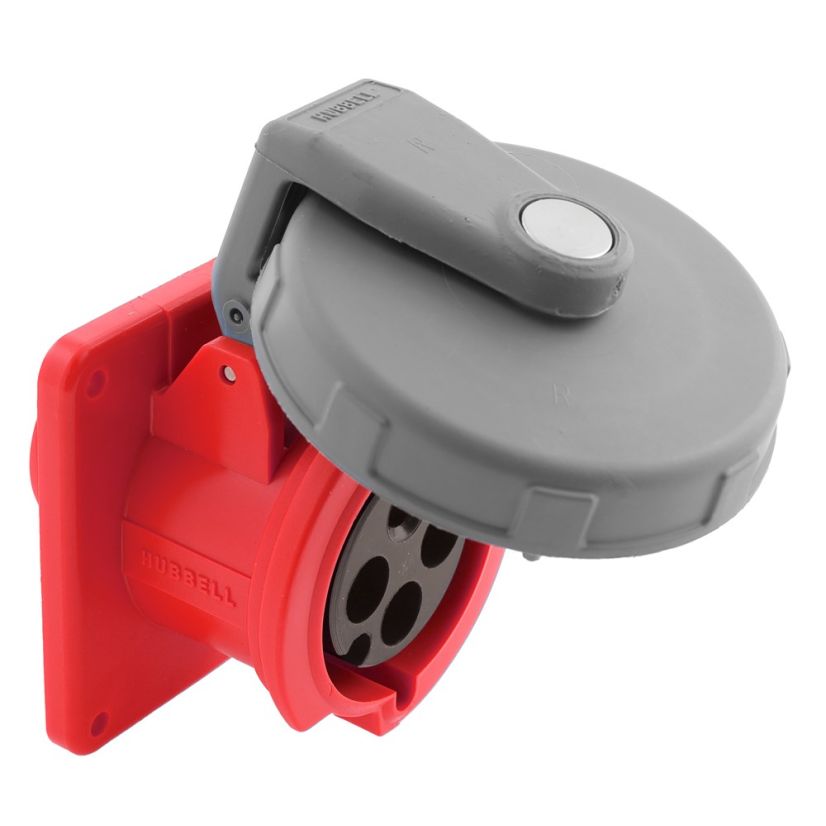

Hubbell Wiring Device - Kellems HBL430R7W

Hubbell Wiring Device-Kellems HBL430R7W 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Receptacle

Hubbell Wiring Device - Kellems HBL430R7W

Hubbell Wiring Device-Kellems HBL430R7W 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
In Stock: 4More Info
|

BrandHubbell Wiring Device - Kellems

MFG #HBL430R7W

Werner Part #39056

UPC783585404639

In Stock: 4More Info
|

BrandHubbell Wiring Device - Kellems

MFG #HBL430R7W

Werner Part #39056

UPC783585404639

Product Description

Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight, 480 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite/Thermoplastic, Red, 4.27 in H x 3.75 in W x 3.09 in D Dimensions
Attributes
Amperage Rating30
ColorRed
Dimensions3.75 in W x 3.09 in D x 4.27 in H
Enclosure TypeIP67
GradeIndustrial
MaterialThermoplastic
NEMA RatingNon-NEMA
Number of Poles3
Number of Wires4
Terminal TypePressure Screw
Type3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Screw Mount
Voltage Rating480 VAC
Country of OriginUS
ManufacturerHubbell
Temperature Rating-40 to 75 deg C
Type / Style3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight
Hubbell Wiring Device-Kellems HBL430R7W 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
