Leviton 2735
LevitonĀ® 2735 3-Phase Grounding Receptacle Locking Flanged Inlet, 480 VAC, 30 A, 3 Poles, 4 Wires, White
Leviton 2735
LevitonĀ® 2735 3-Phase Grounding Receptacle Locking Flanged Inlet, 480 VAC, 30 A, 3 Poles, 4 Wires, WhiteOut of StockMore Info
|
Out of StockMore Info
|
Product Description
LevitonĀ® Locking Flanged Inlet, 3-Phase Grounding Receptacle, 480 VAC, 30 A, 10 hp, 3 Poles, 4 Wires, NEMA L16-30P, Industrial Grade, -40 to 60 deg C, Back Wired Terminal, Nylon, White, 33 in Dia
Attributes
Documents
Specifications
Attributes
Amperage Rating30
ColorWhite
Country of OriginUS
Dimensions33 in Dia
GradeIndustrial
Horsepower10 hp
ManufacturerLeviton
MaterialNylon

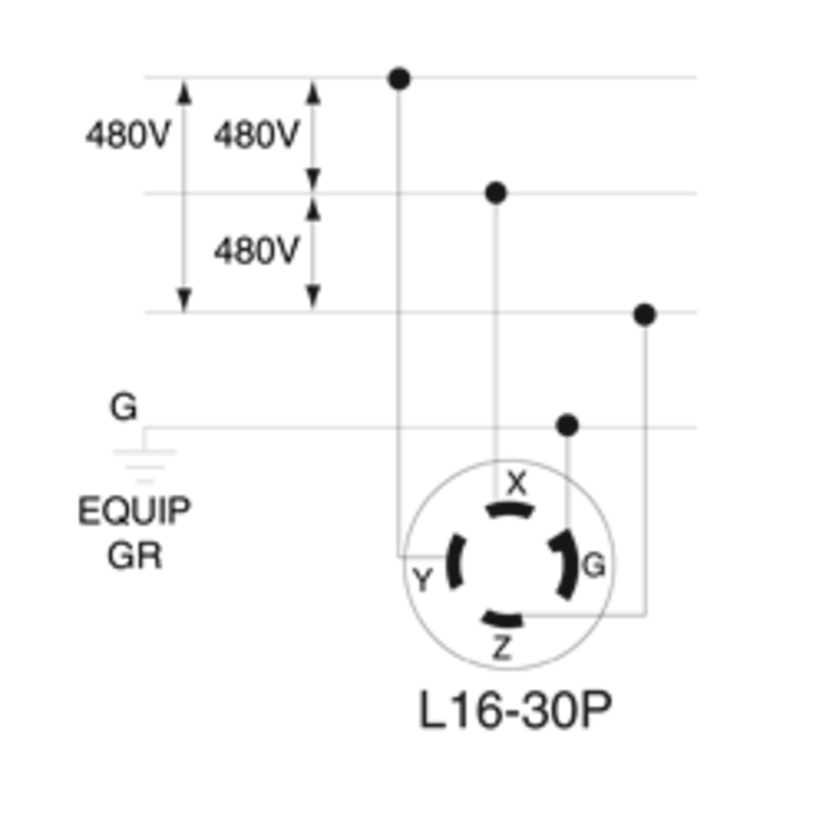

NEMA RatingNEMA L16-30P
Number of Poles3
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeBack Wire
Type3-Phase Grounding Receptacle
Type / Style3-Phase Grounding Receptacle
Voltage Rating480 VAC
Documents
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No.42 File No. LR406|Federal Specification WC596|UL 498 File No. E13393|UL94 V-2 Flammability Rating
LevitonĀ® 2735 3-Phase Grounding Receptacle Locking Flanged Inlet, 480 VAC, 30 A, 3 Poles, 4 Wires, White
