Sta-Kon RA18-47PT

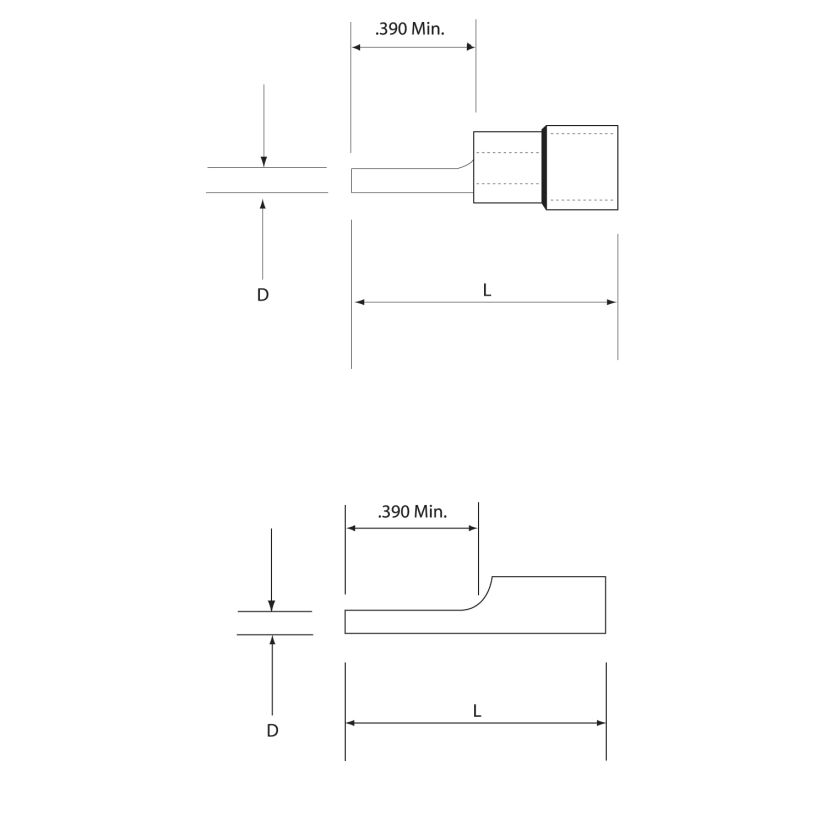

Thomas & Betts Sta-Kon® RA18-47PT Insulated Pin Terminal, 22 to 18 AWG Conductor, 0.075 in Dia x 0.39 in L Pin, Copper, Red
Sta-Kon RA18-47PT
Thomas & Betts Sta-Kon® RA18-47PT Insulated Pin Terminal, 22 to 18 AWG Conductor, 0.075 in Dia x 0.39 in L Pin, Copper, RedOut of StockMore Info
|
Out of StockMore Info
|
Product Description
Sta-Kon® Pin Terminal, Insulated, Series: RA Series, 22 to 18 AWG Conductor, 0.075 in Pin Diameter, 0.39 in Pin Length, 300 VAC, Specifications: 0.03 in Stock THK, Copper, 105 deg C, 0.85 in Overall Length, Red
Attributes
Documents
Features
Specifications
Attributes
ColorRed
Conductor size22 to 18 AWG
Country of OriginUS
ManufacturerThomas & Betts
MaterialCopper
Overall Length0.85 in
Pin Length0.39 in
SeriesRA Series
Temperature Rating105 deg C
TypeInsulated
Type / StyleInsulated
Voltage Rating300 VAC
Documents
Features
Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocksNylon insulatedERG4001 recommended toolDesigned to prevent shorting, wire strand loss and/or wire pullout resulting from improper termination of stranded wireDesigned to meet emerging global standards which require wire to metric style terminal block installations be terminated with a "pin" style terminalElectro-tin plated finish
Specifications
0.03 in Stock THK
