nVent HOFFMAN DAH4002B

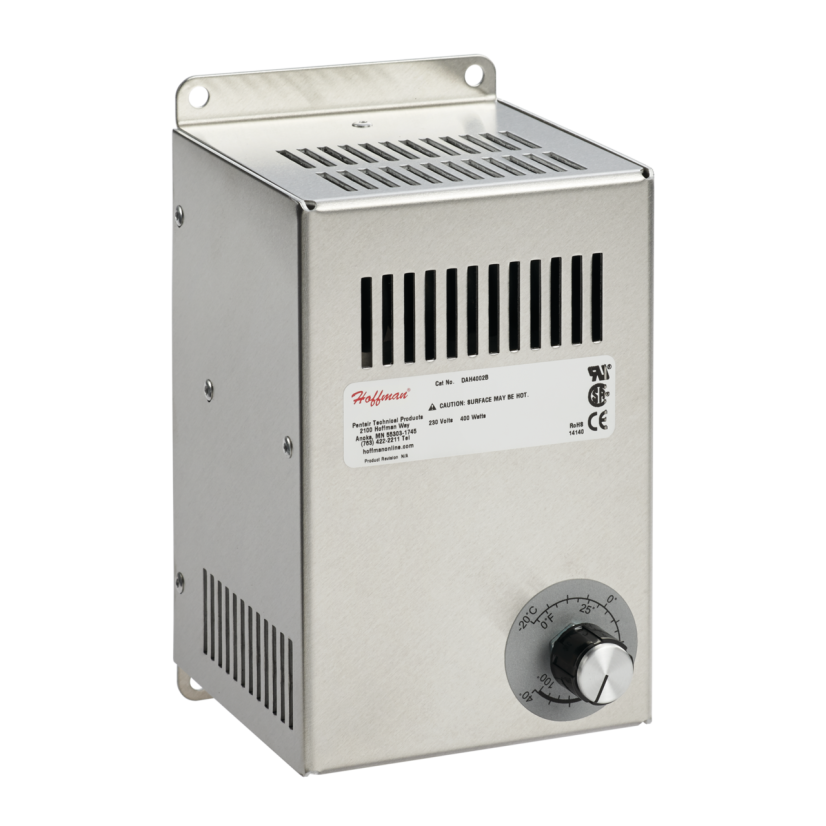

nVent HOFFMAN DAH4002B D85 Electric Heater, 400 W, 230 VAC, Panel Mount
nVent HOFFMAN DAH4002B
nVent HOFFMAN DAH4002B D85 Electric Heater, 400 W, 230 VAC, Panel MountProduct Description
Hoffman Electric Heater, Series: D85, 400 W, 230 VAC, 1.86 A, 0 to 100 deg F, 4-1/4 in Overall Width, 7-1/2 in Overall Height, Panel Mount, Aluminum, Brushed Aluminum, Domestic
Attributes
Documents
Features
Attributes
Amperage Rating1.86 A
Country of OriginUS
Domestic/ImportDomestic
FinishBrushed Aluminum
HeightOverall: 7-1/2 in
MaterialAluminum
Mounting TypePanel
Overall Height7-1/2 in
Overall Width4-1/4 in
Power Rating400 W
SeriesD85
Temperature Rating0 to 100 deg F
Type / StyleElectric Heaters
Voltage Rating230 VAC
WidthOverall: 4-1/4 in
Documents
Features
Thermostat range adjustable from 0 to 100 deg F (-18 to 38 deg C)Ball bearing fanTerminal strip with clamp connector that accepts both solid and stranded wireFan draws cool air from the bottom of the enclosure and passes this air across the thermostat and heating element before being released into enclosure cavityHeated air is discharged through the top of the heater unit
nVent HOFFMAN DAH4002B D85 Electric Heater, 400 W, 230 VAC, Panel Mount
