nVent ILSCO GGC-7

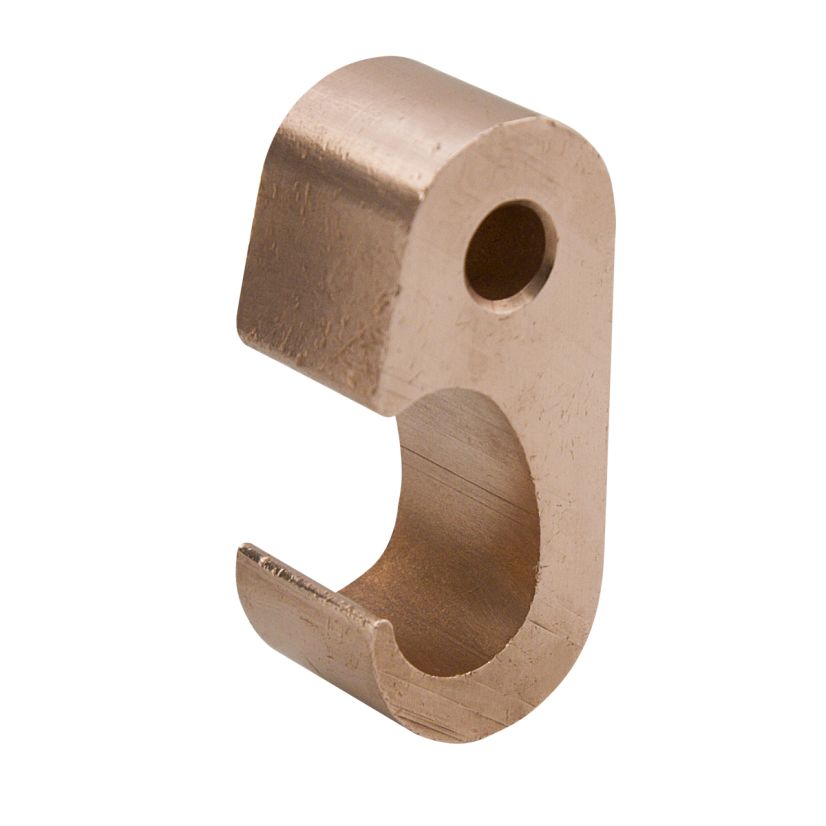

nVent ILSCO GGC-7 Type GGC Grounding Grid Tap Connector, 250 to 500 kcmil Conductor, 5/8 to 3/4 in Rod, Figure 6, Copper
nVent ILSCO GGC-7
nVent ILSCO GGC-7 Type GGC Grounding Grid Tap Connector, 250 to 500 kcmil Conductor, 5/8 to 3/4 in Rod, Figure 6, CopperIn Stock: 19More Info
|
BrandnVent ILSCO
MFG #GGC-7
Werner Part #3912403
UPC783669260625
In Stock: 19More Info
|
BrandnVent ILSCO
MFG #GGC-7
Werner Part #3912403
UPC783669260625
Product Description
nVent ILSCO ClearChoice® Grounding Grid Tap Connector, Type GGC, 250 to 500 kcmil Conductor, 5/8 to 3/4 in Rod, Figure 6, 600 VAC Voltage Rating, Copper, 2.6 in H x 0.75 in W
Attributes
Documents
Features
Specifications
Attributes
Bolt/Rod SizeRod Size: 5/8 to 3/4 in
Conductor size250 to 500 kcmil
Dimensions2.6 in H x 0.75 in W
MaterialCopper
Rod Size5/8 to 3/4 in
ShapeFigure 6
TypeType GGC
Type / StyleType GGC
Documents
Features
- Manufactured from high strength copper alloy provides maximum conductivity and eliminates the possibility of corrosion
- Clearly marked with wire size and die index provides easy identification and tooling recommendation
- Range taking reduces inventory
- Pre-filled with DE-OX® oxide inhibiting compound prevents oxides from forming
- Connector can be rotated to adjust for alignment of grid
- For copper conductor only
- Non-hazardous installation - can be installed in all types of weather with no need for protective equipment or clothing
- Does not produce heat or dangerous particles
- Versatile - can be used as a tap connector or as a lap splice connector
- 3/0 AWG stranded to 250 kcmil tap conductor size
- #5 to 6 main rebar998 die index
Specifications
600 VAC Voltage Rating
