Bussmann Series NO.616-R

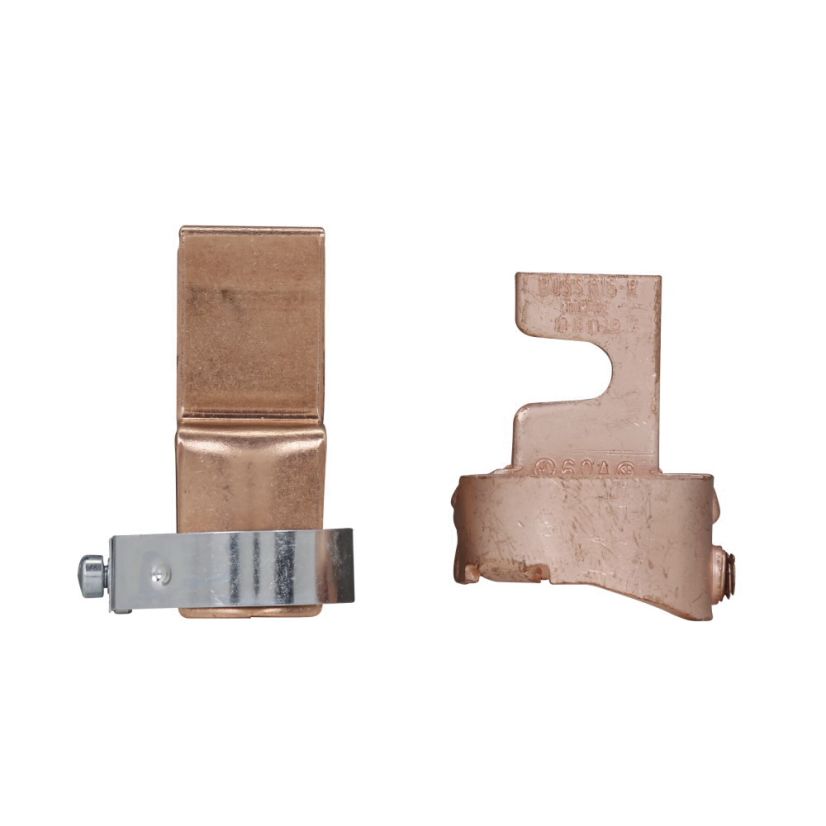

EATON Bussmann Series NO.616-R Fuse Reducer, 600 VAC, Class: R, 60 A Fuse
Bussmann Series NO.616-R
EATON Bussmann Series NO.616-R Fuse Reducer, 600 VAC, Class: R, 60 A FuseInventory Not Available
BrandBussmann Series
MFG #NO.616-R
Werner Part #22923
UPC051712613705
Inventory Not Available
BrandBussmann Series
MFG #NO.616-R
Werner Part #22923
UPC051712613705
Product Description
EATON Bussmann Series A range of fuse reducers for class H(K), J and R ferrule and blade fuses. Fuse reducers install on fuse ferrules or blades to permit the application of smaller size fuses than those for which the fuse blocks or holders are designed.
Attributes
Documents
Features
Specifications
Attributes
Amperage Rating100 A
ClassR
Fuse Block Size100 A
Fuse Size60 A
Voltage Rating600 V
Country of OriginMX
GTIN00051712613705
ManufacturerEATON
Type / StyleFuse Reducer
Documents
Features
- Fuse reducers install on fuses and permit smaller size fuses to be used in larger amp size switches and blocks
- Reducers will fit into any panel or switch including the dead front type
- Strong contact is maintained both mechanically and electrically
- There are no reducers to go from 250 to 600 VAC
- There are no reducers for switching from one class to another
- Fuse Size: 60
- AD2
Specifications
Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E12853|Guide No. IZZR|CSA Certified|Class 6225-01|CSA File No. 47235
