Littelfuse LFJ60100-3CID

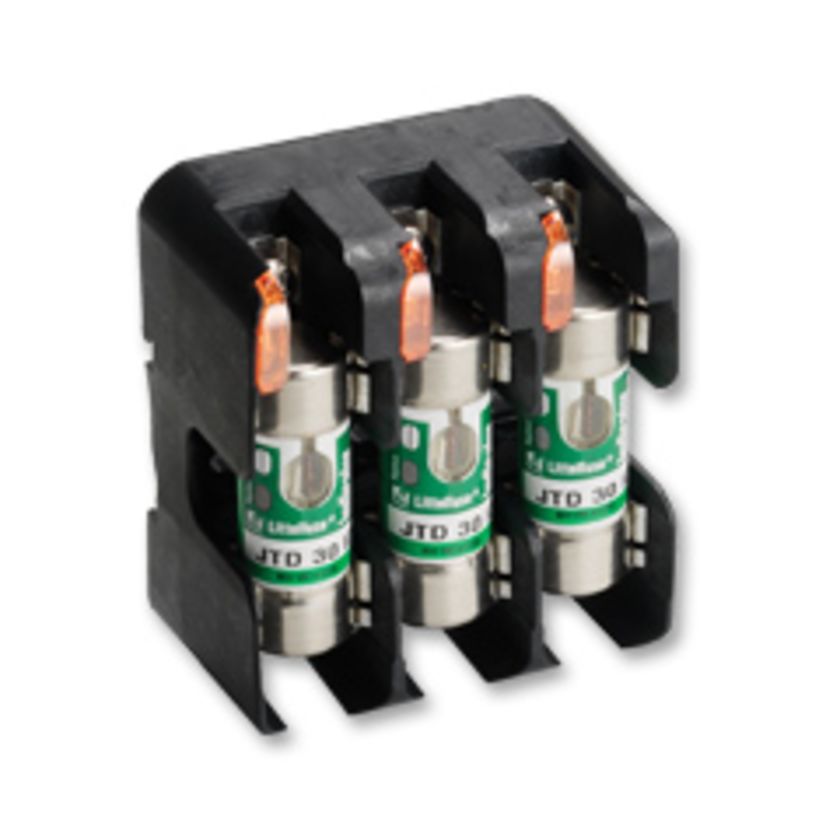

Littelfuse® POWR-GARD® LFJ60100-3CID Indicating Fuse Block, 600 VAC, 100 A, Class: J, 14 to 10 AWG Wire, 3 Poles
Littelfuse LFJ60100-3CID
Littelfuse® POWR-GARD® LFJ60100-3CID Indicating Fuse Block, 600 VAC, 100 A, Class: J, 14 to 10 AWG Wire, 3 PolesIn Stock: 35More Info
|
BrandLittelfuse
MFG #LFJ60100-3CID
Werner Part #4026023
UPC079458181890
In Stock: 35More Info
|
BrandLittelfuse
MFG #LFJ60100-3CID
Werner Part #4026023
UPC079458181890
Product Description
Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFJ, 600 VAC, 100 A, 3 Pole, Class: J, Box Lug, 14 to 10 AWG Wire, DIN Rail Mount, 4.626 in Fuse Length, 1 in Fuse Dia, 130 deg C, For Use With: JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse, Thermoplastic, 5.44 in L x 5.36 in W x 2.62 in H
Attributes
Documents
Features
Attributes
Amperage Rating100 A
ClassJ
Connection TypeBox Lug
Dimensions5.44 in L x 5.36 in W x 2.62 in H
Fuse Diameter1 in
Fuse Length4.626 in
MaterialThermoplastic
Mounting TypeDIN Rail
Number of Poles3
SeriesLFJ
Size of Wire14 to 10 AWG
Suitable For Use WithJTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse
Temperature Rating130 deg C
Voltage Rating600 VAC
Country of OriginCN
ManufacturerLittelfuse
Type / StyleIndicating
Documents
Features
Space saving design up to 45% smaller than existing blocksUniversal mounting holes for easy replacementOnly 1-hand is required to release from DIN rail (lock open lock closed)Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocksLead (Pb) freePhenolic blocks have side barriers for isolationIndication offered on all versions except 200 to 600 ADIN rail releasable for all non-knife blade style fusesCovers available for 100 a and lower to enhance safety
