Appleton TCGC

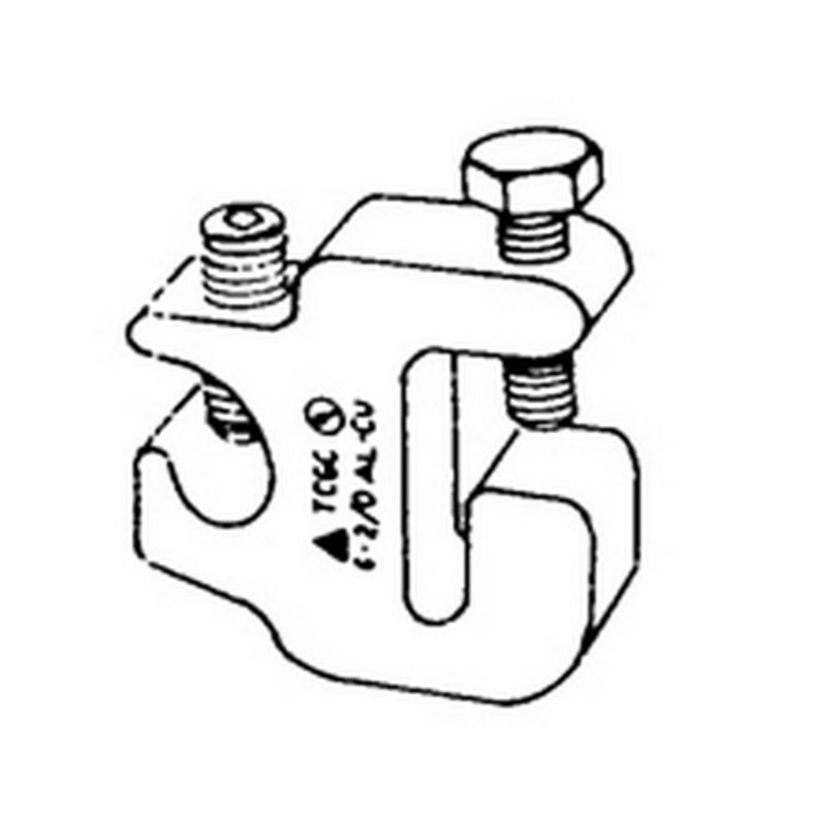

Emerson Electric AppletonĀ® TCGC Type TCC Grounding Cable Tray Clamp, Aluminum, Tin Electroplated
Appleton TCGC
Emerson Electric AppletonĀ® TCGC Type TCC Grounding Cable Tray Clamp, Aluminum, Tin ElectroplatedProduct Description
AppletonĀ® Cable Tray Clamp, Type TCC Grounding, For Use With: #6 to 2/0 Wire, Aluminum, Tin Electroplated Finish, AppletonĀ® Cable Tray Clamp ADDITIONAL DETAILS
Attributes
Documents
Features
Specifications
Attributes
FinishElectro-Plated Zinc
Load Capacity800 lb
ManufacturerEmerson Electric
MaterialSteel
Mounting TypeChannel
Outside Diameter3-1/4 in
SeriesB2000
Suitable For Use WithOD Pipe/Conduit
Thickness12 ga
Type2-Piece
Type / StyleType TCC Grounding
Documents
Features
Clamps mount on all types of tray configurations (inside, outside or double flange)Exclusive design provides full 360 deg swivel, allowing exit conduit positioning at any angle, eliminating the need for separate inside or outside flange clamps and field modificationUnique clamp mounting provides greater cable capacity and working area within the tray by reducing internal clamp obstructionType TCCD feature exclusive double conduit clamps conserve to space where multiple cables exit the tray at one location, mechanically galvanized steel nuts, bolts and other hardwareFor supporting rigid conduit to cable tray flange at each location where tray cable exits the tray and is run through rigid conduit raceway to control panel boards, motor starters and other electrical devicesMechanically galvanized steel nuts, bolts and other hardware
Specifications
5/16-18 Hardware
