Cutler-Hammer Series DS361UX

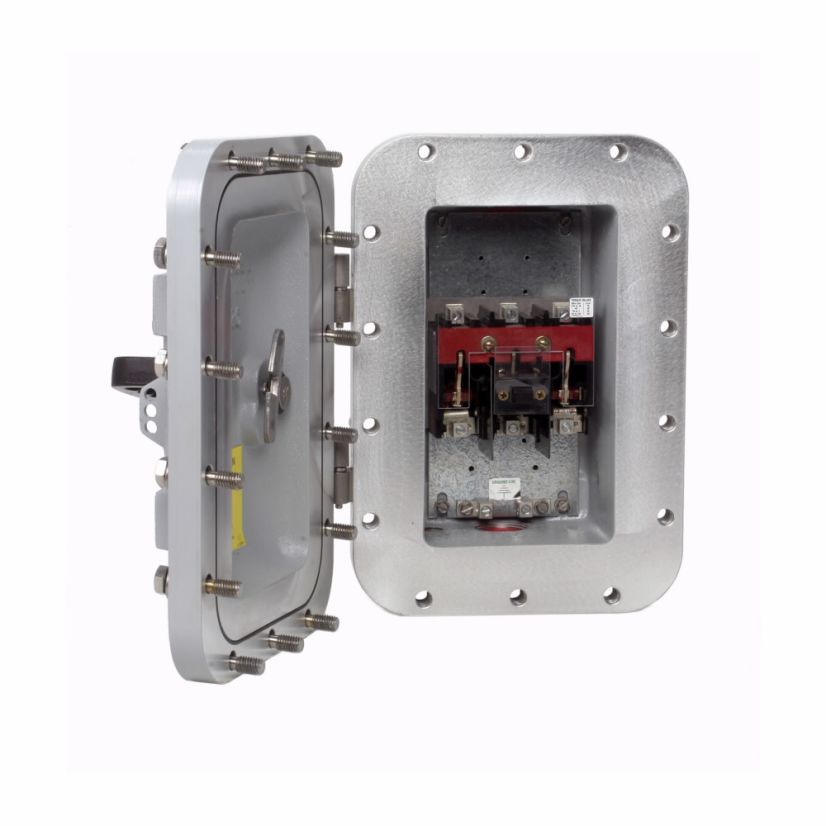

EATON Cutler-Hammer Series DS361UX Heavy Duty Non-Fusible Disconnect Switch, 480/600 VAC, 250 VDC, 30 A, 5 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
EATON Cutler-Hammer Series DS361UX Heavy Duty Non-Fusible Disconnect Switch, 480/600 VAC, 250 VDC, 30 A, 5 hp, 15 hp, 20 hp, TPST Contact, 3 Poles

Cutler-Hammer Series DS361UX

EATON Cutler-Hammer Series DS361UX Heavy Duty Non-Fusible Disconnect Switch, 480/600 VAC, 250 VDC, 30 A, 5 hp, 15 hp, 20 hp, TPST Contact, 3 Poles

BrandCutler-Hammer Series

MFG #DS361UX

Werner Part #580312

UPC782114858684

BrandCutler-Hammer Series

MFG #DS361UX

Werner Part #580312

UPC782114858684

Product Description

EATON Cutler-Hammer Series Disconnect Switch, Heavy Duty Non-Fusible, 480/600 VAC, 250 VDC, 30 A, 5 hp, 15 hp, 20 hp, 3 Pole, TPST Contact Form, Handle Actuator, NEMA 7/9 Enclosure, Surface Mounting, Line/Load Terminal, 55 deg C, 10.28 x 14.67 x 18.67 in Dimensions, Cast Aluminum
Attributes
Actuator TypeHandle
Amperage Rating200 A
Breaker TypeTHQL
Country of OriginMX
Dimensions39-3/16 in H x 14 in W x 3-3/4 in D
Enclosure Box SizeNEMA 13
Enclosure TypeNEMA 1
Horsepower5 hp, 15 hp, 20 hp
Interrupt Rating22 kA
ManufacturerEaton Corp
Mounting TypeFlush
Number of Circuits40
Number of Poles1
Number of Spaces40
Number of Wires3
SeriesTLM
Size of Wire6 AWG to 250 kcmil
Type1-Phase Standard
Type / StyleHeavy Duty Non-Fusible
Voltage480/600 VAC, 250 VDC
Wiring Configuration3-Wire
