T&B® 10-407
T&B® 10-407 High Temperature Wire Connector, Springless Spring, 18 to 12 AWG Aluminum/Copper/Stranded Wire, Porcelain
T&B® 10-407
T&B® 10-407 High Temperature Wire Connector, Springless Spring, 18 to 12 AWG Aluminum/Copper/Stranded Wire, PorcelainOut of StockMore Info
|
BrandT&B®
MFG #10-407
Werner Part #432511
UPC783786004751
Out of StockMore Info
|
BrandT&B®
MFG #10-407
Werner Part #432511
UPC783786004751
Product Description
T&B® Wire Connector, High Temperature, Springless Spring, Aluminum/Copper/Stranded Wire, 18 to 12 AWG Wire, 300 VAC, Specifications: 7/32 in Top Dia, >221 deg F, Porcelain, White, 13/32 in ID x 17/32 in OD x 27/32 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorWhite
Country of OriginUS
Dimensions13/32 in ID x 17/32 in OD x 27/32 in L
ManufacturerThomas & Betts
MaterialPorcelain
Size of Wire18 to 12 AWG
Spring TypeSpringless
Temperature Rating>221 deg F
TypeHigh Temperature
Type / StyleHigh Temperature
Type of WireAluminum/Stranded Copper
Voltage Rating300 VAC
Documents
Features

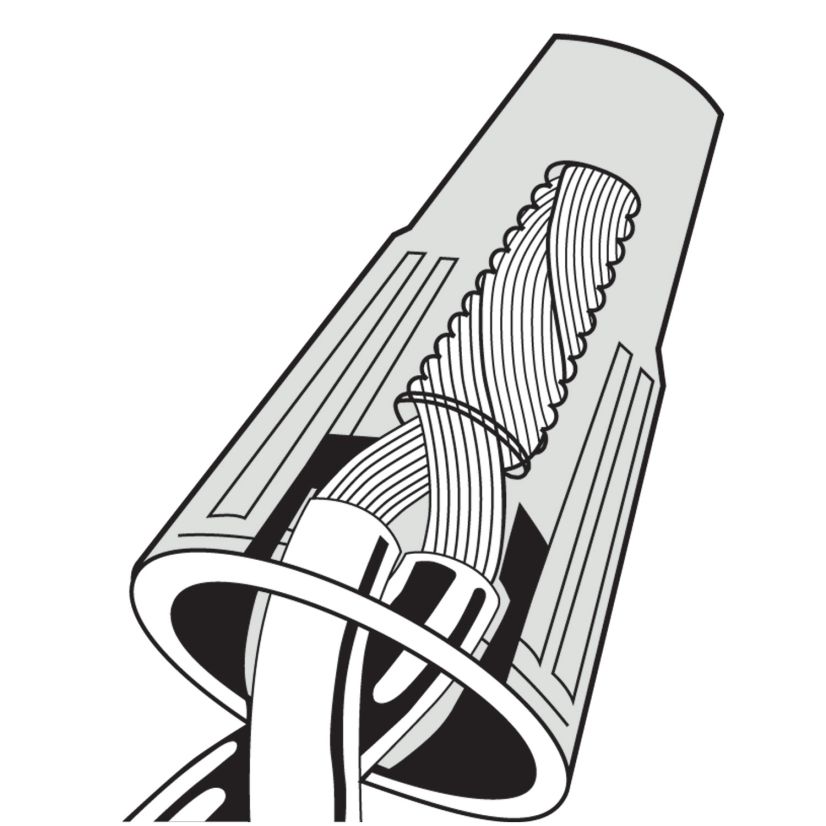

Closely spaced groves for excellent twisting powerDeep, wide throat ensures full insulation coverageFunneled entry helps wires into threaded compression compartmentSpringless inner surface of cap threaded to secure conductors with the same efficiency as a springFor high temperature furnace/oven or other intense heat applications up to 645 deg CExcellent grip(2) 18 AWG to (4) 16 AWG wire combinationsThree sizes accommodate 18 to 14 AWG stranded copper
Specifications
7/32 in Top Dia
T&B® 10-407 High Temperature Wire Connector, Springless Spring, 18 to 12 AWG Aluminum/Copper/Stranded Wire, Porcelain
