Sta-Kon F8010
Thomas & Betts Sta-Kon® F8010 F Series Insulated Wire Ferrule, 12 AWG Stranded Copper Conductor, 0.906 in L, Copper, Gray
Sta-Kon F8010
Thomas & Betts Sta-Kon® F8010 F Series Insulated Wire Ferrule, 12 AWG Stranded Copper Conductor, 0.906 in L, Copper, GrayBrandSta-Kon
MFG #F8010
Werner Part #3791562
UPC786210335711
BrandSta-Kon
MFG #F8010
Werner Part #3791562
UPC786210335711
Product Description
Sta-Kon® Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 12 AWG Conductor, 0.906 in Length, 0.339 in Dia Barrel, 300 VAC, Specifications: 0.15 in ID x 0.472 in L x 0.006 in THK Pin, 0.339 in Dia Base, 105 deg C, Copper, Tin Coated, Gray
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.339 in Dia
ColorGray
Conductor size12 AWG
Conductor TypeStranded Copper
Country of OriginDE
FinishTin Coated
ManufacturerThomas & Betts
MaterialCopper
SeriesF Series
Temperature Rating105 deg C
TypeInsulated
Type / StyleInsulated
Voltage Rating300 VAC
Documents
Features
Polypropylene insulatedFerrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocksERG4 recommended tool
Specifications

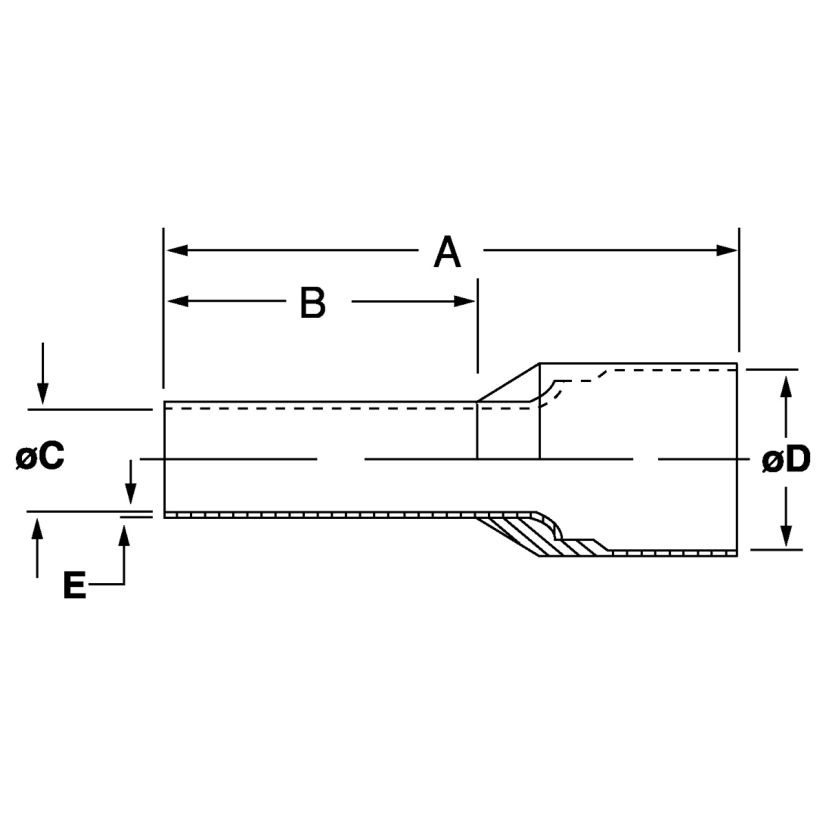

0.15 in ID x 0.472 in L x 0.006 in THK Pin, 0.339 in Dia Base
