Bussmann Series PDB321-1

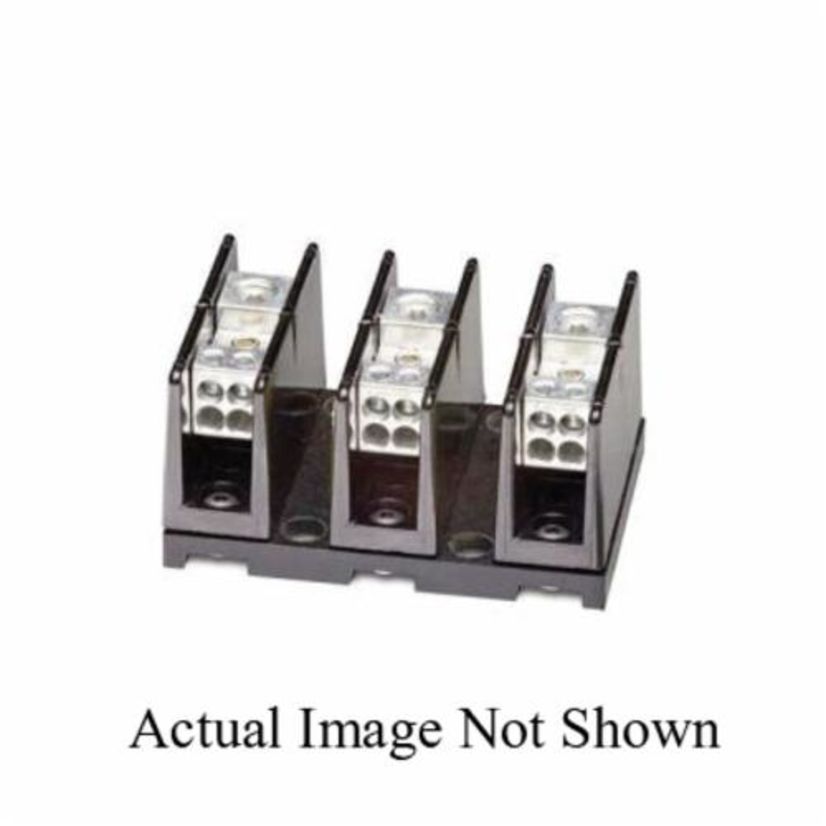

EATON Bussmann Series PDB321-1 Barrier High SCCR Power Distribution Block, 600 VAC/VDC, 175 A, 1 Pole, 8 to 2/0 AWG, 14 to 4 AWG Wire, Phenolic
Bussmann Series PDB321-1
EATON Bussmann Series PDB321-1 Barrier High SCCR Power Distribution Block, 600 VAC/VDC, 175 A, 1 Pole, 8 to 2/0 AWG, 14 to 4 AWG Wire, PhenolicBrandBussmann Series
MFG #PDB321-1
Werner Part #2360408
UPC051712637848
BrandBussmann Series
MFG #PDB321-1
Werner Part #2360408
UPC051712637848
Product Description
EATON Bussmann Series Power Distribution Block, Barrier High SCCR, 600 VAC/VDC, 175 A, 1 Pole, 1 Primary Connections, 6 Secondary Connection, 8 to 2/0 AWG, 14 to 4 AWG Wire, Class CC Fuse, 200 kA Short Circuit Current Rating, Phenolic, 4 in L x 1.96 in W x 3.32 in H
Attributes
Documents
Features
Attributes
Primary Connection/Pole1
Secondary Connection/Pole6
Amperage Rating63 A
Connection TypeLift Terminal
Dimensions3 in L x 3-1/2 in W x 3 in H
Enclosure TypeIP40/IP54
Frequency Rating50/60 Hz
Interrupt Rating10 kA
ManufacturerEATON
Mounting TypeDIN rail
Number of Poles4
Short Circuit Current Rating200 kA
Size of Wire8 to 2/0 AWG, 14 to 4 AWG
Temperature Rating-25 to 60 deg C
TypeType A
Type / StyleBarrier High SCCR
Voltage600 VAC/VDC
Documents
Features
Tin plated aluminum connectorsPDBs are often an assembly's lowest-rated component or features weak link and may limit the assembly SCCR to only 10kA, eliminate this weak link with these new, higher-rated PDBsEquipment with low SCCRs are limited to locations where only low-level short circuit current is availableBy replacing a low rated PDB with a new cooper bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installation flexibility8 to 2/0 AWG copper line, (6) 14 to 4 AWG copper load wire200kA (12 to 4 AWG), 100kA (14 to 4 AWG)Panel mount175/400 A class CC, G, J, T fuse(1) box lug primary, (6) box lug secondary
